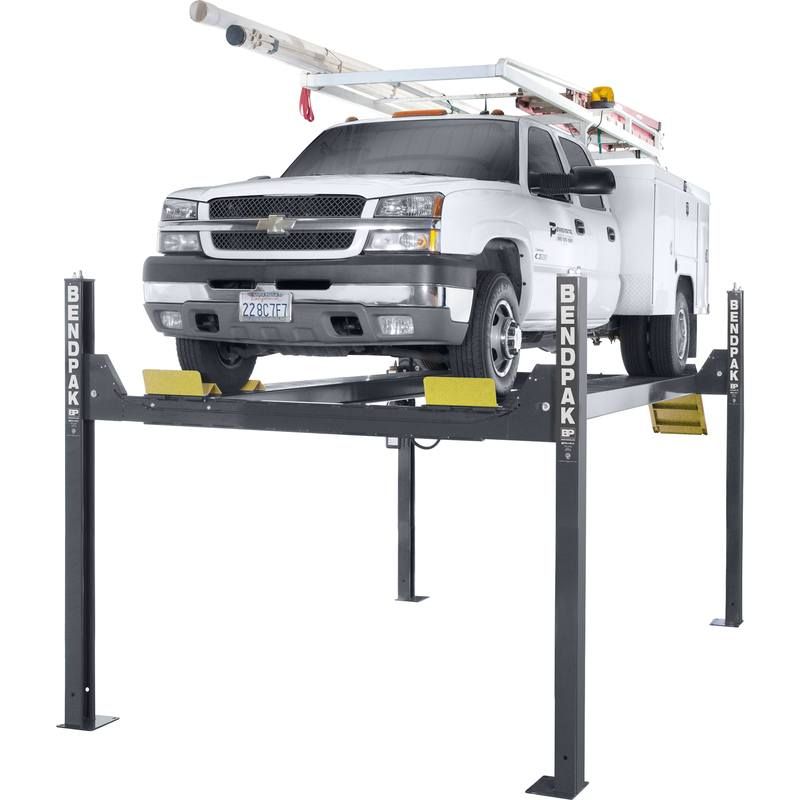

HD-14T

More Height​ in a 14,000-lb. Lift

The HD-14T delivers exceptional lifting power with an extended 82” rise. You’ll easily be able to accommodate a wider variety of vehicle, such as commercial fleets of trucks or vans. Impress your customers by showing off your ability to work on whatever vehicle they bring in.

Extended runways

Longer runways are necessary for heavy-duty lifts. The HD-14T features runways which are long enough to handle large trucks and SUVs. Also, with longer runways you have less chances of accidentally damaging your vehicle.

Dual-hub cable sheaves

BendPak utilizes massive cable sheaves. They’re 10.5” diameter sheaves and 2.25” diameter sheave axles, and they’re all kept with the runway and cross tubes. This will greatly cut down on how much time and cash you will have to spend on maintenance and general upkeep.

Heavy-duty aircraft cable

BendPak has designed each lift in this series to include four, ½” diameter, 6 x 25 stainless-steel lifting cables that boast an incredible breaking strength of over 14,000 lbs. each.

Built-in lubrication

You won’t have to worry about lubricating your lift. The grease fittings on the sheaves and sheave axles will ensure that these critical parts remain properly lubricated.

Flow restrictor

Perhaps the most important part of lifting a car is when you have to keep the runways level during rise. Because of this, BendPak insists on designing their lifts to incredibly high standards. The integrated flow restrictor ensures a slow, controlled descent in the very rare case of hydraulic hose failure.

Large base plates

This lift is sporting 10” x 12” base plates which keep the four-post lift safe, stable, and always ready for service.

Spring-loaded safety locks

The HD-14T features automatic locks which will activate as the runways rise. Adjustable safety ladders will make sure that the ramps are level, even if there is a slight slope in the garage flooring. This makes the lift safer while at the same time increasing its versatility.

Push-button pneumatic lock release

You can lower the lift with a simple press of a button. A pneumatic (air-powered) lock release lets the lift descend with ease. Aircraft-quality stainless steel and aluminum pneumatic cylinders are the most durable and trouble-free that you’ll find on a car lift.

Secondary lock system

In all likelihood, you’ll never need BendPak’s secondary lock system. Either way this feature comes standard on the HD-14T. If for some reason one of the cables gets damaged, the system will make sure your lift remains stable until it can be fixed. You may never need it, but you’ll still have peace of mind knowing it’s there.

Integrated design

Hidden internal components keep them protected from environmental damage, as well as human interference.

Adjustable height locking positions

The HD-14T is fully adjustable and features multiple lock positions so you can work at the height which is most comfortable for you.

Electric-hydraulic power system

Let the power system do the heavy lifting while you worry about the work. This lift is equipped with a dependable, zero-maintenance system which keeps all of the controls right at your fingertips.

Longer approach ramps

You’ll find that the longer the approach ramp is, the easier it is to load low-stance cars. High-clearance trucks and SUVs don’t usually have this concern, but it will still work towards keeping your lift as versatile as possible.

Flexible protective conduit

The HD-14T comes equipped with ALI-certified cable tubing which protects against shocks, as well as wear and tear that will occur naturally over time. Unprotected cables are a major concern, so BendPak takes away the worry with their flexible, non-metallic tubing.

Rolling bridge jacks

It is our personal recommendation that you consider the optional 7,000 lb. capacity rolling bridge jack (model RJ-7W), so you’ll be able to perform wheel service on your lift. These frame-engaging jacks will be able to easily lift the vehicle off the four-post lift’s runway. By using two jacks together you can raise all four wheels off at once.
