HD-7PXW
7,000-lb. Capacity / Super-Tall Rise / Four-Post Lift / Vehicle Display Platform
In stock
SKU 5175516
$10,095.00

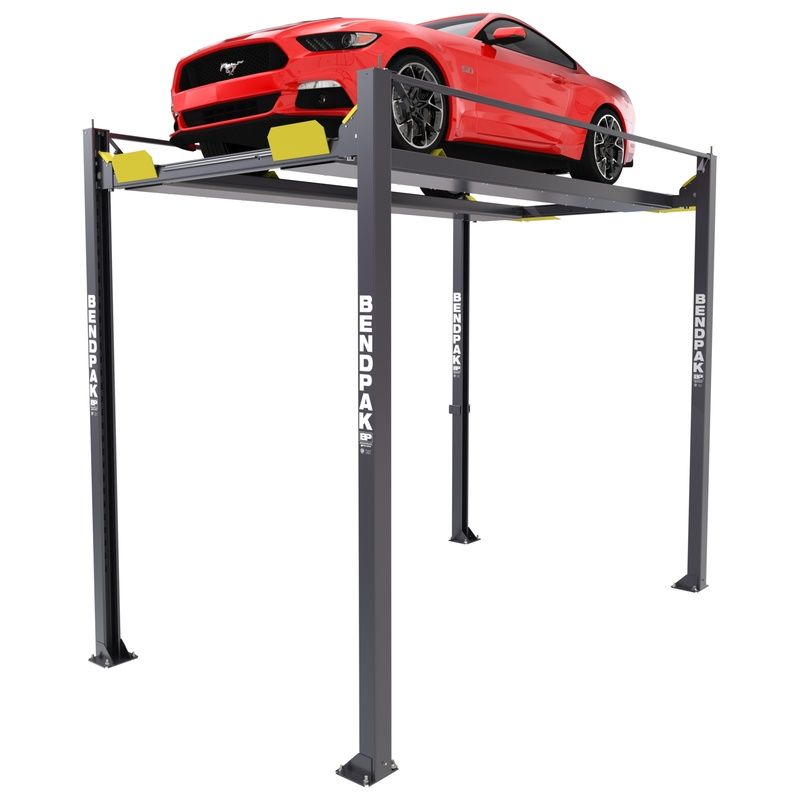

Lifts don’t get much taller than BendPak’s HD-7PXW. This giant is an amazing display platform which can handle 7,000 lbs. with no issue. If that weren’t enough, this lift can also bring all that weight over 12 feet into the air. This lift was specifically designed for dealers. What better way can you get the attention of your customers than by having a vehicle tower above them?
Essential Accessories
Overview
Amazingly Tall Four-Post Lift
BendPak’s HD-7PXW four-post lift has a 7,000-lb. lift capacity and 188” long runways to accommodate a variety of vehicle types and wheelbases.
Same great benefits as other lifts
The HD-7PXW has all the same safety and convenience features as other BendPak four-post lifts. Features like the one-touch pneumatic safety release instantly releases all locks simultaneously, and the lift’s lone hydraulic cylinder is neatly tucked under the power-side runway. If you want a good looking, high-reaching car lift, you’ve found it.
If you’re on the fence here are a few things to think about when wondering how a high-rise lift can benefit you. Let’s say you run a dealership. Having that brand-new vehicle towering above all your customers is definitely a solid way to bring attention to the vehicle. Its sleek design complements most showrooms. Bring in more customers with this impressive display.
Features
- 7,000-lb. maximum lifting capacity
- Super tall rise of delivers 12-feet of lifting height
- Electric / hydraulic power system
- Single hydraulic cylinder mounted underneath runway
- Internal anti-sway slider blocks in each column
- Oversized self-lubricating cable rollers
- Features heavy-duty 3/8” aircraft cable
- Rugged 1.25” roller axles
- Multi-position safety locks in each column
- Adjustable lock ladders
- Ramps feature non-skid surface
- Push-button pneumatic safety release
Specs
| Style | Floorplate |
|---|---|
| SKU# | 5175516 |
| Lifting Capacity | 7,000 lbs. (3,175 kg) |
| *Max Capacity / Front Axle | 3,500 lbs. (1,588 kg) |
| *Max Capacity / Rear Axle | 3,500 lbs. (1,588 kg) |
| A - Min. Runway Height | 4.5" (114 mm) |
| B - Max. Rise | 140" (3,556 mm) |
| C - Max. Lifting Height | 145" (3,683 mm) |
| D - Overall Width | 110.25" (2,800 mm) |
| E - Outside Length | 198" (5,029 mm) |
| F - Overall Length | 224.5" (5,702 mm) |
| G - Height of Columns | 158" (4,013 mm) |
| H - Width Between Columns | 100" (2,540 mm) |
| I - Drive-Thru Clearance | 86.5" (2,197 mm) |
| J - Runway Width | 19" (483 mm) |
| K - Length of Runways | 188" (4,775 mm) |
| L - Width Between Runways | 37.5" (953 mm) or 44.5" (1,130 mm) |
| M - Runway Centerline | 56.5" (1,435 mm) or 63.5" (1,613 mm) |
| N - Outside Edge of Runways | 75.5" (1,918 mm) or 82.5" (2,096 mm) |
| Rated Capacity | 135" (3,429 mm) |
| 75% Capacity | 115" (2,921 mm) |
| 50% Capacity | 95" (2,413 mm) |
| 25% Capacity | 80" (2,032 mm) |
| Locking Positions | 30 |
| Lock Spacing | Every 4" (102 mm) |
| Motor | 208-230 VAC / 50-60 Hz / 1Ph |
| Noise | 45 dB |
| Shipping Weight | 2,180 lbs. (988.8 kg) |
| Shipping Dimensions | 192'' x 22'' x 35'' (4,876 mm x 558 mm x 889 mm) |
| Time to Full Rise | 60 seconds |
