2475N7.5-V-3

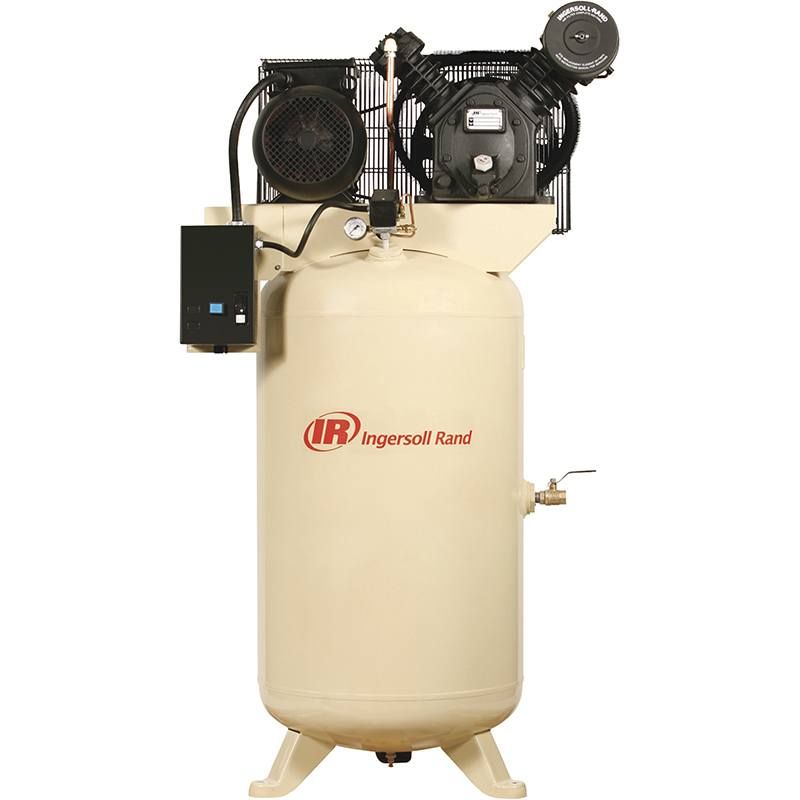

Vertical Air Compressor
In stock
SKU 6010182
$4,242.00
This air compressor from Ingersoll Rand offers the perfect solution for commercial, automotive, and light industrial applications with intermittent load demands.

Overview

Ingersoll Rand’s® 7.5 HP 80-Gal 230 V 3PH Vertical Air Compressor is capable of taking on any continuous-daily air delivery challenge. It features a durable cast-iron air pump and included precision-engineered components, including a one-piece connecting rod, stainless steel finger valves, an overhung crankshaft, and individually cast cylinders. It will enhance efficiency and reliability, and it will simplify pump maintenance. This device is loaded with many money-saving features, such as a finned intercooler, a one-piece connecting rod, an overhung crankshaft, and individually cast cylinders, all of which contribute to reliability and ease of maintenance. The oversized bearings have a minimum 15,000-hour expected lifespan, and thanks to its open-footed design, the tanks is easy to drain while a powder-coated surface keeps it weather-resistant. This compressor has a flow rate of 24 cubic feet per minute at its maximum 175 pounds per square inch of pressure. To give you more bang for your buck, this compressor comes with an All Season Select startup kit, comprising four quarts of T30 Select synthetic lubricant and two air filter elements.

Features

  • 7.5 HP
  • High-efficiency inlet air filter with sound attenuation baffles
  • Balanced pistons for maximized efficiency and minimized vibration
  • Automotive style 2-piece connecting rods
  • Oversized cast-iron balanced belt wheel to allow continuous-duty operation
  • Magnetic motor starter
  • Oil level sight glass
  • 24 capacity (cfm) @ 175 psi
  • 175 max pressure (psi)
  • Tank outlet 0.75 In.
  • Extended 2-year warranty when used with the included startup kit
  • 80 Gallon tank size
  • Vertical configuration
  • 230 Volt 3 phase
  • 100% cast-iron cylinder head with deep groove directional cooling fins
  • Oversized industrial-grade bearings for extended pump life
  • Oversized industrial-grade bearings for extended pump life
  • High-efficiency stainless steel valves
  • 100% cast-iron pump

Specs

Acme Tools Air Compressor Type Air Compressor
Acme Tools Brand Name INGERSOLL RAND
Air Compressor Power Type Electric
Air Compressor Pump Design Oil Lubricated
Air Compressor Pump Type Oil Lubricated
Air Compressor Type Stationary Piston
Air Delivery (scfm) @ 100PSI 24.18
Air Delivery (scfm) @ 175PSI 23.13
Air Delivery (scfm) @ 40PSI 24.3
Air Delivery (scfm) @ 90PSI 24.2
Assembled Weight (lbs) 611
Color / Finish Tan painted finish
Compressor Design Vertical
Compressor Uses Automotive service and body shops,
fleet maintenance, machine shops,
production and manufacturing lines,
wood working shops, dry cleaners, car washes,
general maintenance/repair shops and farms
Horsepower (hp) 7.5
Height (in) 76
Length (in) 76
Width (in) 40
Maximum Amperage Draw (A) 22
Maximum Pressure Rating (psi) 175
Motor Type TEFC
Nozzle Fitting Size 3/4 In.
Tank Capacity (gal) 80
Switch Type Magnetic motor starter
