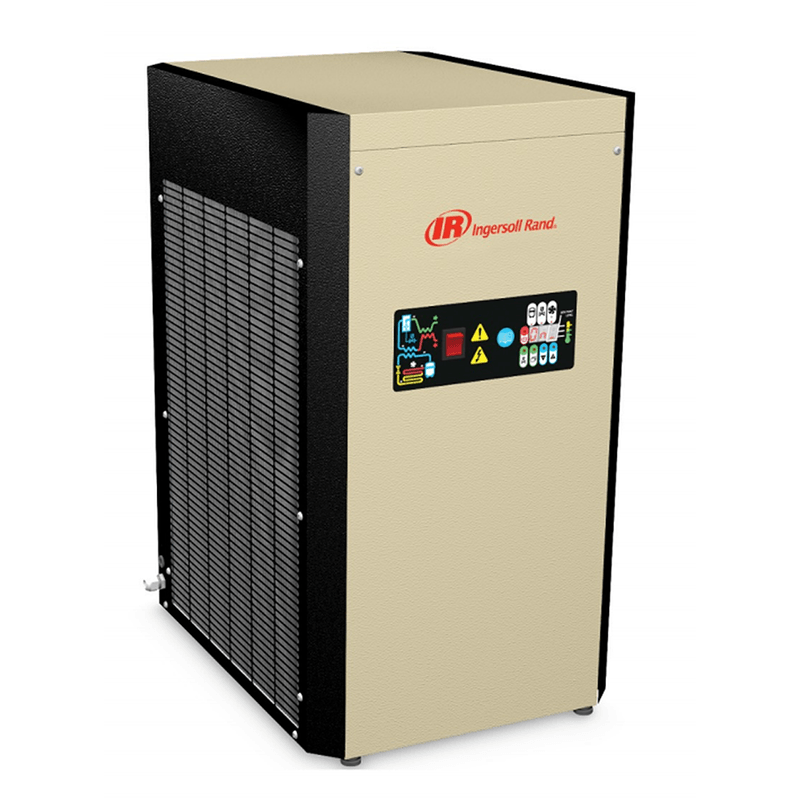

D42IN
Compressed Air Dryer Refrigerated
In stock
SKU 6010183
$1,793.00
Ingersoll Rand’s refrigerated dryers make providing continuous dry air as easy as piping a self-contained unit into your compressed air supply.Overview
Ensure reliable and maintenance-free air drying with Ingersoll Rand’s D42IN non-cycling refrigerated dryer! This sophisticated machine provides unparalleled reliability with virtually no maintenance requirements. This dryer boasts a refrigeration system and heat exchanger that effectively cools compressed air as it passes through, ensuring optimal performance.
Featuring a unique combination of components and advanced features, Ingersoll Rand dryers are engineered to deliver maximum productivity and an extended service life, all at an affordable cost. With equipment, making it an ideal choice for a wide range of applications.
Choose Ingersoll Rand for a high-quality air compressor and refrigerated dryer solution that prioritizes performance, longevity, and cost-effectiveness. Trust in their expertise to keep your compressed air systems running smoothly and efficiently.
Features
- Reduced energy use: efficient heat exchangers, a built-in stainless steel demister that removes all moisture and a fully adjustable programmable electronic drain valve reduce energy use and minimize air loss
- Built-in Reliability: corrosion-resistant heat exchangers, an enhanced control-system and high-efficiency moisture-separation ensure a steady long-term supply of dry air
- Smart control: easy to use, Advanced microprocessor control that lets you easily adjust and manage system parameters
- Equipment protection: built-in coalescing filter stops contamination by separating water and oil from the compressed air
- Consistent clean, dry air: variable-speed fans reduce power consumption when units operate at less than maximum cooling capacity, while ensuring a consistent Dew point
Specs
Engine
| HP | 7.5 |
|---|
Motor
| Voltage | 115 Volt AC |
|---|---|
| Phase | 1-Phase |
Air Dryer
| Air Dryer CFM | 25 |
|---|---|
| Max PSI | 203 |
| Max Inlet Temp. Rating | 140 |
| Max Ambient Temp. Rating | 122 |
| Non-Cycling | Yes |
| Inlet Fittings | 1/2" |
| Outlet Fittings | 1/2" |
| Aftercooler | No |
| Pre-Filter | No |
| Post-Filter | No |
| Wall Mountable | No |
| Alarm Lights | Yes |
| Auto Drain | Yes |
| Regenerative | No |
| High Temp | No |
Overview
| Weight | 60 Pounds |
|---|---|
| Consumer Warranty | 1 Year |
| Commercial Warranty | 1 Year |
| Product Length | 18 Inches |
| Product Width | 16 Inches |
| Product Height | 18 Inches |
| Power Type | Electric |
