D54IN

Name: D54IN
SKU: 6010184

Refrigerated Air Dryer

In stock

SKU 6010184

$2,240.00

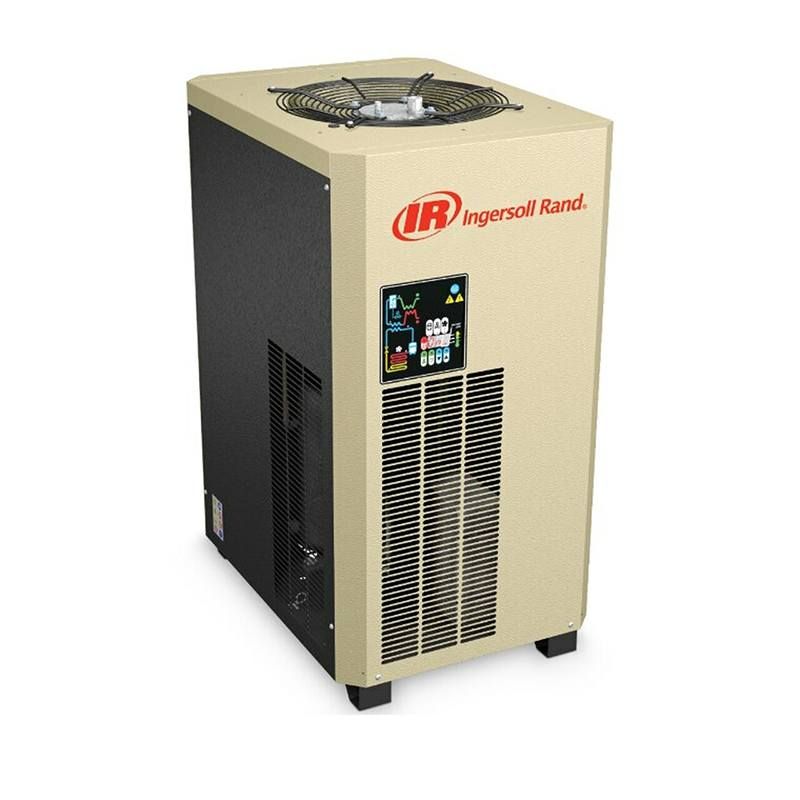

Ingersol Rand Refrigerated Air Dryer D54IN, 32 CMF @ 100° Inlet, 100° Ambient, 100PSI, 1/2" NPT, 110V

Specifications Data Sheet Manual

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Overview

The Ingersoll Rand D54IN stands out as a premier air dryer, utilizing efficient heat exchangers and a built-in stainless-steel demister to effectively remove all moisture from compressed air. This advanced dryer is equipped with a fully adjustable programmable electronic drain valve, contributing to reduced energy consumption and minimized air loss during operation.

The D54IN is designed for durability, featuring resistance to corrosion and ease of adjustment for managing system parameters. Its advanced microprocessor technology ensures precise control and monitoring, allowing you to tailor the dryer’s performance to meet your specific needs.

Choose the Ingersoll Rand D54IN refrigerated dryer for a reliable and efficient solution that prioritizes moisture removal, energy efficiency, and ease of operation. Trust in Ingersoll Rand’s commitment to innovation and quality to enhance the performance of your compressed air systems.

Features

Features energy-consumption reducing and reliability-improving technology
Corrosion-resistant heat exchangers reduce air flow restriction
Dryer provides more efficient throughput with less wasted energy

Specs

Engine

HP	10

Motor

Voltage	115 Volt AC
Phase	1-Phase

Air Dryer

Air Dryer CFM	32
Max PSI	203
Max Inlet Temp. Rating	140
Max Ambient Temp. Rating	122
Non-Cycling	No
Inlet Fittings	1/2"
Outlet Fittings	1/2"
Aftercooler	No
Pre-Filter	No
Post-Filter	No
Wall Mountable	No
Alarm Lights	Yes
Auto Drain	Yes
Regenerative	No
High Temp	No

Overview

Weight	62 Pounds
Consumer Warranty	1 Year
Commercial Warranty	1 Year
Product Length	18 Inches
Product Width	16 Inches
Product Height	18 Inches
Power Type	Electric
