34988NI

Refrigerant Recover, Recycle, Recharge Machine
In stock
SKU 6010225
$5,823.00

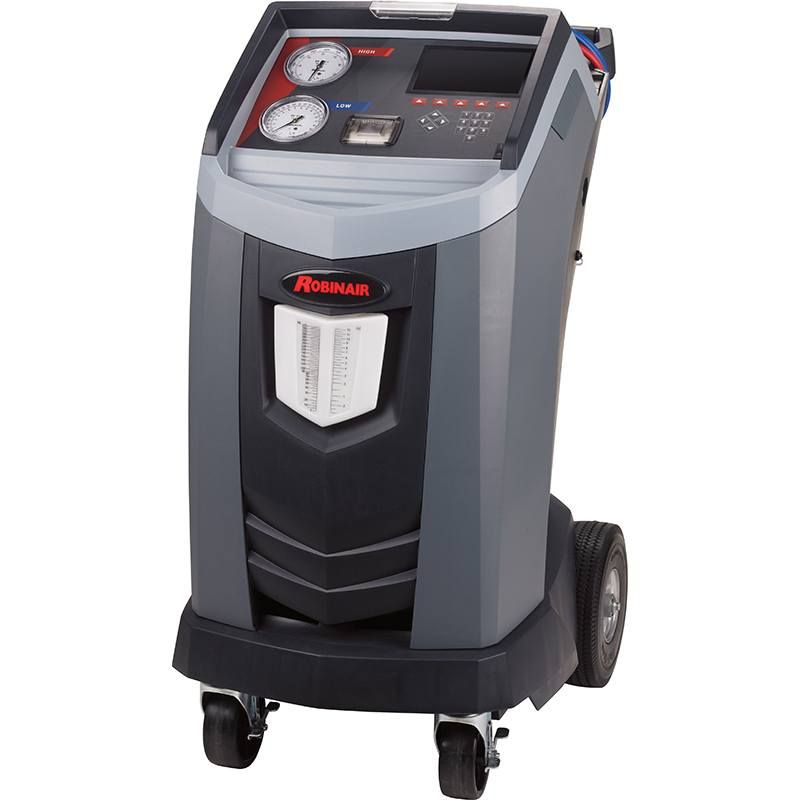

Robinair’s 34988NI is a premium AC machine which combines ease of use and superior accuracy. It can recover, recycle, evacuate, perform leak tests, and charge on its own without the need to stand and monitor the machine.

Overview

The 34988NI comes with a fully automatic function so it can perform all of its most useful functions without needing you to stand over it. This product is fully SAE J2788 compliant and exceeds the requirements for charge accuracy and recovery efficiency. This machine also includes Robinair’s patented automatic refrigerant refill feature which maintains a user-selectable amount of refrigerant in the internal vessel, and it’ll signal when it’s time to change the supply tank, so no monitoring will be required.

This model is capable of automatically adding oil if necessary by utilizing load cells that can measure the amount of oil that gets removed from the system and automatically putting the right amount of AC lubricant back into the system. The new 34988NI comes with two separate oil inject bottles so two different types of oil can be stored and injected, making it simple for technicians to service different vehicles. One of the upgrades that comes standard on this new model is the large, easy-to-read color display, as well as the printer. It has the ability to inject UV dye into the vehicle’s AC so you’ll be able to quickly and easily identify if there’s any leaks. An optional refrigerant charge and oil capacities database is available for North American market vehicles. This will end up saving you a ton of time which you would’ve spent looking up unknown charge amounts.

You’ll be able to upgrade your machine with Wi-Fi and Bluetooth capability with the 80211VCI Wireless Master Kit. The kit comes loaded with a USB Wi-Fi/Bluetooth adapter, as well as a software update SD card so you’ll be able to optimize your machine. Once you’re done installing, you can use the included OBDII dongle and the refrigerant capacity database to read VIN, YMME, and automatically pull refrigerant and oil capacities.

Once your machine is upgraded, use the 80212 2-pack Bluetooth temperature probes to read and display multiple vent temperatures. Vent temperatures can be added to before and after service reports, so it’ll be easy for you to confirm a repair and record temperature differences.

For temp probes only, you’ll need to purchase the 80211TMP Wi-Fi/Temperatures Probes Master Kit, which will include the same USB adapter and software update SD as the 80211VCI kit so you can be running the best version of your machine

Features

  • Automatic oil drain and inject
  • Multiple oil bottles allow for storing and injecting two types of oil
  • Large, easy-to-read graphical display
  • Save before/after service data and print with standard onboard printer
  • Automatic refrigerant refill, air purge, dye inject
  • Programmable vacuum feature
  • Visual and audible service complete/fault alarm

Specs

Operating Range 32° - 120°F (0°-50°C)
Recovery Performance >95% at 70 to 75° F (21 to 24°C) <30 minutes
Storage Temperature 0 to 150°F (-18 to 66°C)
Charge Performance +/- 0.5 oz at 70° to 75° F (+/- 15g at 21° to 24° C)
Compressor 3/8 hp, pressure protected, oiled, hermetically sealed
Vacuum Pump 1.5 cfm dual stage, 29.9 InHg
Hoses 9 ft (2.75 m)
Filter Capacity 150 lb (68kg), spin-on type
Internal cylinder 30 lb DOT (13.6 kg); 22 lb (10 kg) capacity
Operating voltage 125 VAC 60 Hz
Display 7 in. LCD graphical display
Languages English, French, Spanish, Portuguese
